DIN2093 disc spring washers are Boltead’s main products, we manufacture and supply disc spring washers. The following is the basic information of our disc spring washers products.
Name | DIN2093 Disc Spring Washers | Materials | Carbon Steel/Stainless Steel |
Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 etc. |
Size | M4-M130 | Surface finish | ZP\BLACK\HDG etc. |
Length | / | Samples | Available |
Boltead is a professional fastener manufacturer and supplier, we are committed to providing customers with one-stop fastener solutions.
Need consultation?

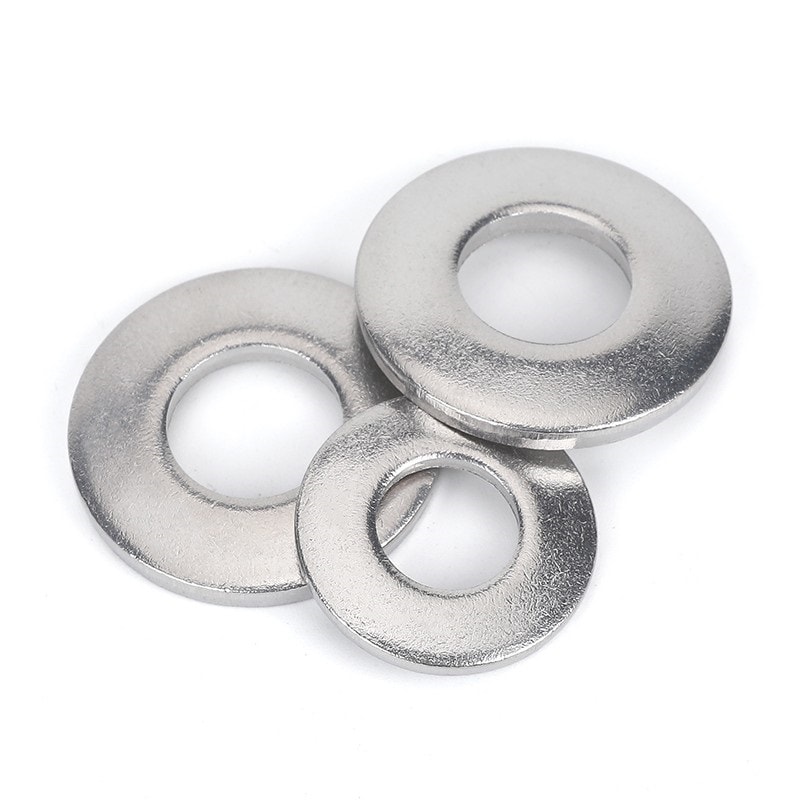

Disc spring washers are Boltead’s products with relatively high production and supply. The following are photos of disc spring washers:
Disc spring washers are Boltead’s main product. We are a manufacturer of disc spring washers and also a supplier of disc spring washers. While producing and supplying lat washers, we also produce bolts, nuts and other fastener products used in conjunction with them.
The disc spring washers we produce are generally classified according to whether the material is carbon steel or stainless steel. More specific classifications are as follows:
There are three common classification methods for washer grades.
Washers can generally be classified according to material, such as carbon steel washers and stainless steel washers.
There are also classifications based on use, shape and size, such as Class A, Class C, etc.
In addition, some washers have strength levels, such as spring washers, which are divided into levels 4.8, 8.8, etc.
In addition to different materials and strengths, the biggest impact on disc spring washers is surface treatment. The following are the more common surface treatments for disc spring washers: black oxide, black zinc, zinc plated (ZP), color zinc plating (CZP /YZP), hot dip galvanized (HDG), dacromet coating, etc.
disc spring washers are sent from the raw material line to the final product. They generally go through the following process:
Annealing of raw materials – pickling – drawing – forming – grinding – heat treatment – surface treatment – classification – packaging – shipping
The rough schematic diagram is as follows:
For more information and knowledge about Disc Spring Washers, please check our blog
Disc Spring Washer DIN 2093
Specification | 8 | 10 | 12.5 | 14 | 16 | 18 | 20 | 22.5 | 25 | 28 | 31.5 | 35.5 | 40 | 45 | 50 | |
d 1 | Min = Nominal (H12) | 4.2 | 5.2 | 6.2 | 7.2 | 8.2 | 9.2 | 10.2 | 11.2 | 12.2 | 14.2 | 16.3 | 18.3 | 20.4 | 22.4 | 25.4 |
maximum value | 4.32 | 5.32 | 6.35 | 7.35 | 8.35 | 9.35 | 10.38 | 11.38 | 12.38 | 14.38 | 16.48 | 18.51 | 20.61 | 22.61 | 25.61 | |
d 2 | max = nominal (h12) | 8 | 10 | 12.5 | 14 | 16 | 18 | 20 | 22.5 | 25 | 28 | 31.5 | 35.5 | 40 | 45 | 50 |
minimum | 7.85 | 9.85 | 12.32 | 13.82 | 15.82 | 17.82 | 19.79 | 22.29 | 24.79 | 27.79 | 31.25 | 35.25 | 39.75 | 44.75 | 49.75 | |
t | 0.4 | 0.5 | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.5 | 1.75 | 2 | 2.25 | 2.5 | 3 | |
t 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
h 1 | 0.2 | 0.25 | 0.3 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.55 | 0.65 | 0.7 | 0.8 | 0.9 | 1 | 1.1 | |
h | 0.6 | 0.75 | 1 | 1.1 | 1.25 | 1.4 | 1.55 | 1.75 | 2.05 | 2.15 | 2.45 | 2.8 | 3.15 | 3.5 | 4.1 | |
Gasket Type | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Specification | 56 | 63 | 71 | 80 | 90 | 100 | 112 | 125 | 140 | 160 | 180 | 200 | 225 | 250 | |
d 1 | Min = Nominal (H12) | 28.5 | 31 | 36 | 41 | 46 | 51 | 57 | 64 | 72 | 82 | 92 | 102 | 112 | 127 |
maximum value | 28.71 | 31.25 | 36.25 | 41.25 | 46.25 | 51.3 | 57.3 | 64.3 | 72.3 | 82.35 | 92.35 | 102.35 | 112.35 | 127.4 | |
d 2 | max = nominal (h12) | 56 | 63 | 71 | 80 | 90 | 100 | 112 | 125 | 140 | 160 | 180 | 200 | 225 | 250 |
minimum | 55.7 | 62.7 | 70.7 | 79.7 | 89.65 | 99.65 | 111.65 | 124.6 | 139.6 | 159.6 | 179.6 | 199.54 | 224.54 | 249.54 | |
t | 3 | 3.5 | 4 | 5 | 5 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | |
t 1 | – | – | – | – | – | – | – | 7.5 | 7.5 | 9.4 | 9.4 | 11.25 | 11.25 | 13.1 | |
h 1 | 1.3 | 1.4 | 1.6 | 1.7 | 2 | 2.2 | 2.5 | 2.6 | 3.2 | 3.5 | 4 | 4.2 | 5 | 5.6 | |
h | 4.3 | 4.9 | 5.6 | 6.7 | 7 | 8.2 | 8.5 | 10.6 | 11.2 | 13.5 | 14 | 16.2 | 17 | 19.6 | |
Gasket Type | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
①,Material | |||||||||||||||
a) Made of steel as specified in DIN EN10083, DIN EN10089 or DIN EN10132-4. Carbon steel should only be used to make Class 1 springs. Modulus of elasticity of steel E=206000MPa | |||||||||||||||
b) Modulus of elasticity and strength properties of other materials (eg spring stainless steel according to DIN EN 10151, copper alloys (spring bronze) according to DIN EN 1654) may vary. |
Boltead’s delivery cycle is generally 7 to 15 days. If you need more product types and models, or need to customize, the delivery cycle will be longer. In this case, please confirm with our sales professional.
Boltead is a fastener manufacturer and supplier. We are the source factory. The introduction of Boltead can be found here!
Boltead can provide samples for your measurement and testing. The samples are free, and you only need to pay the shipping cost.
Of course. Boltead welcomes OEM/ODM orders. We can not only customize products for you, but also customize your product and its packaging.
For payment amounts <= $1000, 100% prepayment is required. For payment amounts >$1000, 30% prepayment is required, with the balance due before shipment.
Yes, we can provide most documents, such as material certificates, product testing certificates, certificates of origin, and insurance certificates.
Yes, Boltead can ensure the safe and reliable delivery of products to you. Our product packaging will be reinforced beyond the packaging you choose.
The shipping cost depends on the delivery method you choose. Express delivery is typically the fastest but also the most expensive option. Sea freight is the best solution for large quantities of goods. We can provide an accurate shipping cost only when we have detailed information about the quantity, weight, and method. Please contact us for more information.
